T-BOX Communication Repeater

Share:

Introduction

    Remote monitoring vehicle terminal is a 4G vehicle networking technology based on the acquisition terminal, this terminal for the vehicle to provide GPS satellite accurate positioning, collection of vehicle CAN bus data, timelyreporting of vehicle engines, DCDC converters and other data and alarm information.
    Its stable and reliable performance, the car's harsh high and low temperature, vibration and electromagnetic environment stable work, for the car front-mount market to provide a reliable customized solution.

Technical features

● Vehicle information status collection and alarm;
● Blind spot data supplement, seven-day data storage,USB2.0 read storage data;
● Track track tracking, anytime, anywhere to query the vehicle's current location information, historical running track playback;
● IP67 protection rating;

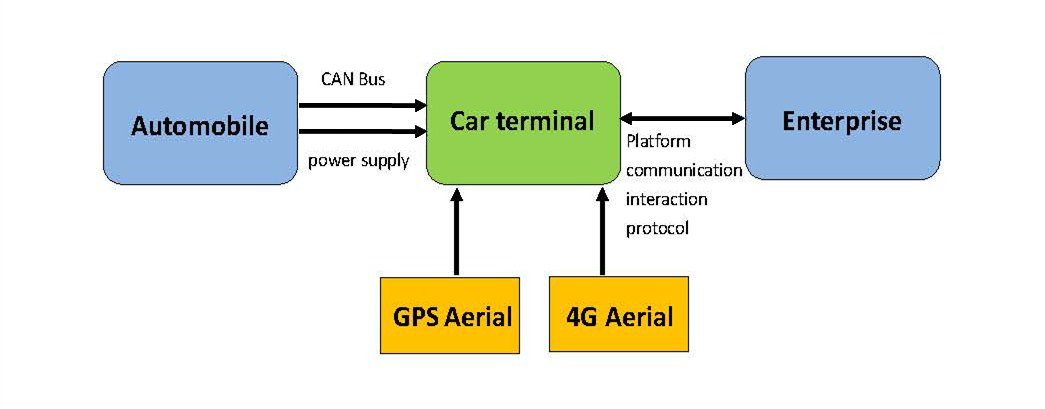

Apply the schematic

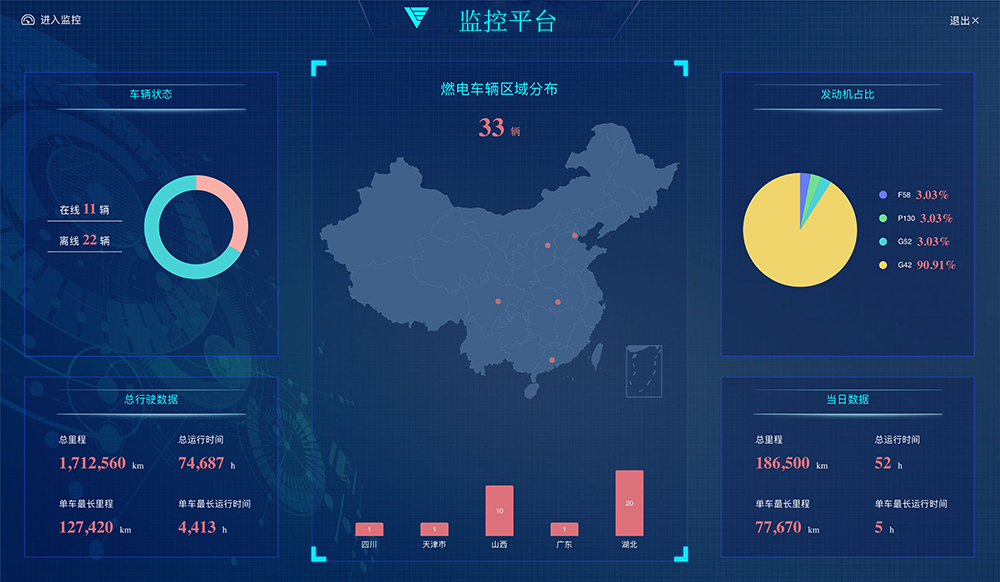

Background interface



Technical parameters

Model

EV_FC/T-BOX_V2.0

Power

Operating voltage

10Vdc~32Vdc

Maximum current

300mA

Average working current

120mA

Positioning

Cold start time

≤70S half-sky state

Hot start time

≤50S

Positioning accuracy

≤5 meters

System

How the data is transferred

Move 4G

How to position

Gps

Local storage

eMMC (4GB) is supported

Light

GPS/GSM/CAN1/Power

Communication

CAN

Housing protection class

IP67

Operating temperature

-30°C~70°C

Store the temperature

-40°C~85°C

Vibration

SAE J2380-2013

Electromagnetic compatibility

GB18655-2018

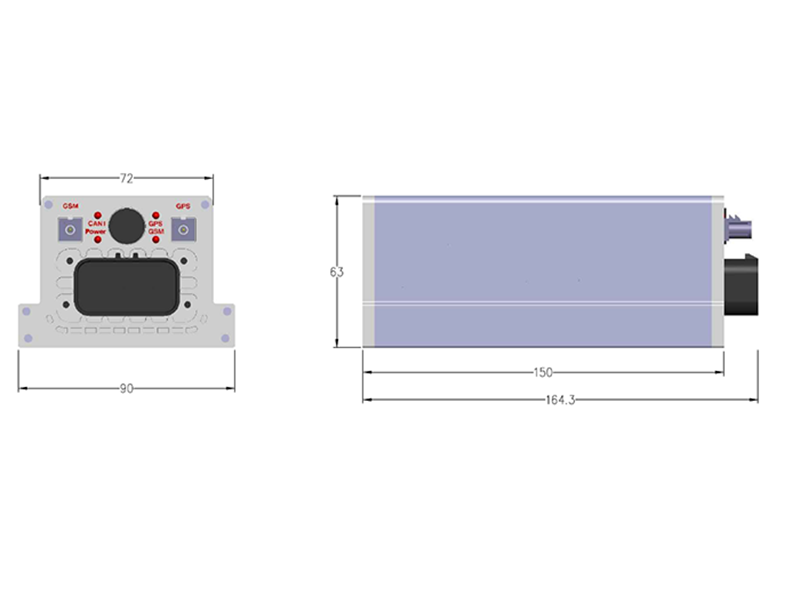

Machinery

Size

150mm*90mm*63mm

Reference weight

0.9kg
